Feature:

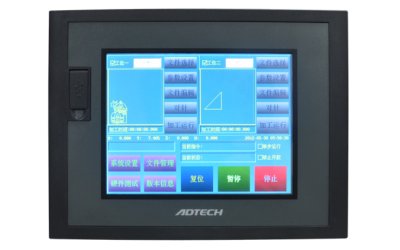

- 5.6 inch real color LCD;
- 4-axis servo/step control;
- Applies ARM9 processor, the main frequency is up to 400M;
- I/O: 32/16;
- Short circuit protection, maximum current 1A;
- Multi communication ports: RS232, U disk, Ethernet, USB;
- Linear acceleration/deceleration;
- Build-in multi-task operation system.
- 5.6 inch real color LCD;
- 4-axis servo/step control;
- Applies ARM9 processor, the main frequency is up to 400M;
- I/O: 32/16;
- Short circuit protection, maximum current 1A;
- Multi communication ports: RS232, U disk, Ethernet, USB;
- Linear acceleration/deceleration;
- Build-in multi-task operation system.
Function:
- 1. High resolution real color LCD: 5.6 inch screen supplies a friendly user human-machine interface;
- 2. U disk makes it’s more convenient for the controller to communicate with other equipments;
- 3. Ethernet interface supports TCP/IP communication protocol;
- 4. RS232 interface can communicate with any equipments which supports RS232;
- 5. I/O ports include 32 channels of coupling input, 16 channels of coupling output,4 channels of pulse/direction signal output;
- 6. Storage capacity: it can save programs up to 256M, which have enough space for processing files and meet kinds of complex processing and running;
- 7. Any 2-4 axes hardware high speed linear interpolation, any 2 axes software arc interpolation and continuous interpolation;
- 8. Applies C language under ADS1.2.
Accessories
| Model | Description | Quantity (piece) |
| E59A1120002 | Terminal board | 1 |
| E59A1118002 | Terminal board | 3 |
| E5901203103 | Terminal board | 1 |
| L1319200001 | USB download line | 1 |
| L0120262GG1 | Data line | 1 |
Application:
- Electronic automation processing/assembly/test;
- semiconductor, LCD automatically processing/test;
- laser cutting, engraving, marking;
- machine vision and measurement;
- biomedical sampling and processing equipment;
- special NC machine tools.
