Product presentation:

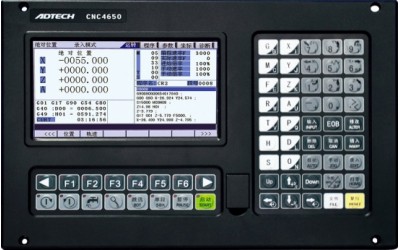

ADT - CNC4650 five axis CNC milling system with four shaft servo motor control; 7 inches color LCD display screen; Using ARM9 processor and FPGA motion control technology, processing speeds of up to 20 m/min. All optical coupling isolation,interfere with superior, processing is stable and reliable.
Properties of products：
- Control axes X, Y, Z, A,B five axis micron level interpolation accuracy；
- According to the different needs of different user configuration step,servo drive,to achieve high cost；
- USB, U disk, RS232COM communications and other communication means to easily help users achieve different data transmission requirements and software upgrades；
- With the network interface, support for remote monitoring and DNC file transfer processing；
- Open platform can be customized according to customer demand for the system；
- Perfect self diagnostic function, inside and outside the state real time display, appear abnormal immediately alarm；
- Support external additional panel, hand box operation, convenient customer knife；
- Macro variable, macro definition programming, to achieve a variety of logical relations. Support for the use of the parameters of the macro program, the use of user programming more convenient；
- DXF+G code template function, the DXF will be automatically converted to G code for processing；
- With the automatic aligning instrument, etc. a variety of knives;
- eaching functions: teaching + simplified instruction programming, using the form of teaching methods, teaching method is simple, intuitive;
- Graphics simulation function: display the graphics of the processing program and the actual running time of the tool moving track, do not control the running of the machine tool and the simulation of the machining process, the test system is correct;
- Multi interface options: supports multi language interface display, automatic fault alarm. Display a wealth of information on the processing, processing time, number of packages;
- Parametric form: the input / output address number is arbitrary, and only needs to fill in the corresponding values in the configuration table address bar；
- 7 inch large color (800*480 pixels) LCD screen
